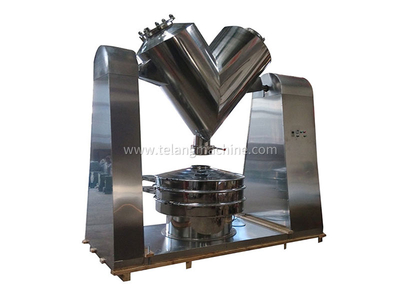

The v type mixer machine made of stainless steel, with smooth surface inside and outside, without dead corner, is a kind of highly-efficient mixer with a simple structure and easy operation.
Model | V-0.02 | V-0.05 | V-0.18 | V-0.3 |
Production Capacity (kg/time) | 8 | 20 | 72 | 120 |
Mixing Time (min) | 4-8 | 4-8 | 4-8 | 6-10 |
Total Volumn(cubic meter) | 0.02 | 0.05 | 0.18 | 0.3 |
Stiring Speed (r/min) | 12 | 12 | 12 | 12 |
Power of Motor (KW) | 0.37 | 0.75 | 1.1 | 1.5 |
Rotating Height (mm) | 1200 | 150 | 1800 | 2200 |
Weight (kg) | 70 | 120 | 280 | 320 |
Model | V-0.5 | V-1 | V-1.5 | V-2 | V-2.5 | V-3 |
Production Capacity (kg/time) | 200 | 400 | 600 | 800 | 1000 | 1200 |
Mixing Time (min) | 6-10 | 6-10 | 6-16 | 6-10 | 6-10 | 8-12 |
Total Volumn(cubic meter) | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
Stiring Speed (r/min) | 12 | 12 | 12 | 12 | 12 | 10 |
Power of Motor (KW) | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 |
Rotating Height (mm) | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 |
Weight (kg) | 550 | 950 | 1020 | 1600 | 2040 | 2300 |
